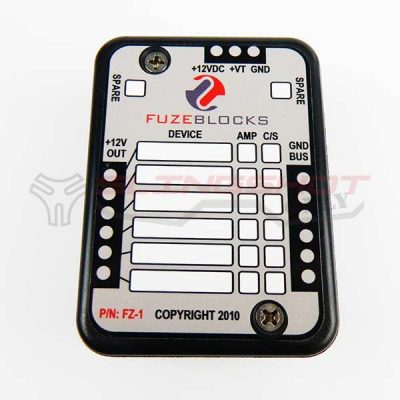

FZ-1 FUZE BLOCK

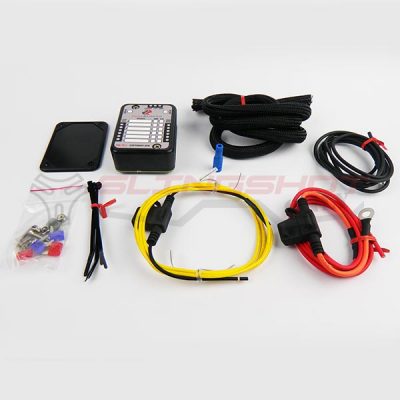

With the Fuzeblock FZ-1 all you need is a space large enough to accommodate it, a 12V wire from the battery, a ground wire to the battery, and a switched trigger wire. Once you have those connected you can start wiring up your accessories. Easy to Install

Specifications:

• Dimensions: L 3.25" x W 2.5" x H 1.25"
• 2 - Onboard diodes to prevent transient voltages (Good news for Canbus bikes)
• Each circuit can handle up to 10A
• The total amperage for the entire FZ-1 should not exceed 30A
• Wiring gauges up to 12AWG

• Built-In 30A Relay
• Thick Circuit Board
• Compact Size
• No Crimping
• Ground Bus
• 6 Fuzed Circuits
• Power Selection (Constant or Switched)
• Power Protection
• Spare Fuze Holders
• Mini (ATM) Fuzes that can be found at most auto stores
• Weather Resistant
• Markable Label
• 95-5VA ABS Cover
• Multiple Mounting Options
